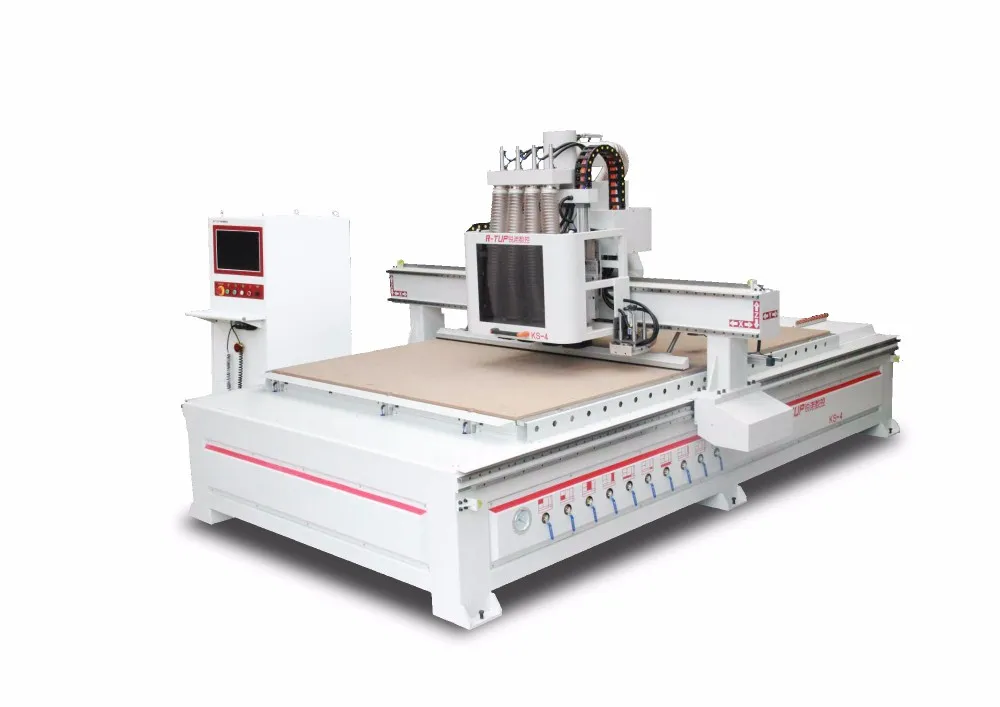

tup 1325 cnc router dsp controller for cnc router machine sale foshan

FOB Reference Price:Get Latest Price
$17,000.00 - $18,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China
Brand Name:
R-TUP
Model Number:
KS-4
Voltage:
AC380V/50HZ
Dimension(L*W*H):
3500*2100*2000mm
Certification:
CE/ISO/SGS
Working area X*Y*Z:
1300x2500x180mm, size can be customized
Spindle tpye:
6kw+3*4.5kw air-cooling spindle
Motor:
Japan Yaskawa Servo motor and driver
Transmission:
X.Y rack gear, Z, Taiwan TBI ball screw
Guide Rail:
German roust Guide Rail
Worktable:
vacuum worktable,
Software:
JDPaint,ArtCam, mastercam UG etc.
Max working speed:
35m/min
Speed of Spindle:
18000rpm/min
Control system:
Taiwan Syntec Control System
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
6kw+3*4.5kw
Weight:
1800KG
Warranty:
12 months
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Package:Foam inside,poly film outside,wooden pallet is optional
Port
Guangzhou/Shunde/Shengzhen
Lead Time :
10-15 days after deposit
Product Description
NO.
Machinical Specifications
Parameter
1
Working range
X-axis:
1300mm
Y-axis:
2500mm
Z-axis:
180mm
2
Machine Precision
Processing  Precision
±0.1mm
Repeat positioning
±0.03mm
3
Machine Speed
Max.  Traverse Speed
75m/min
Max. working Speed
35m/min
4

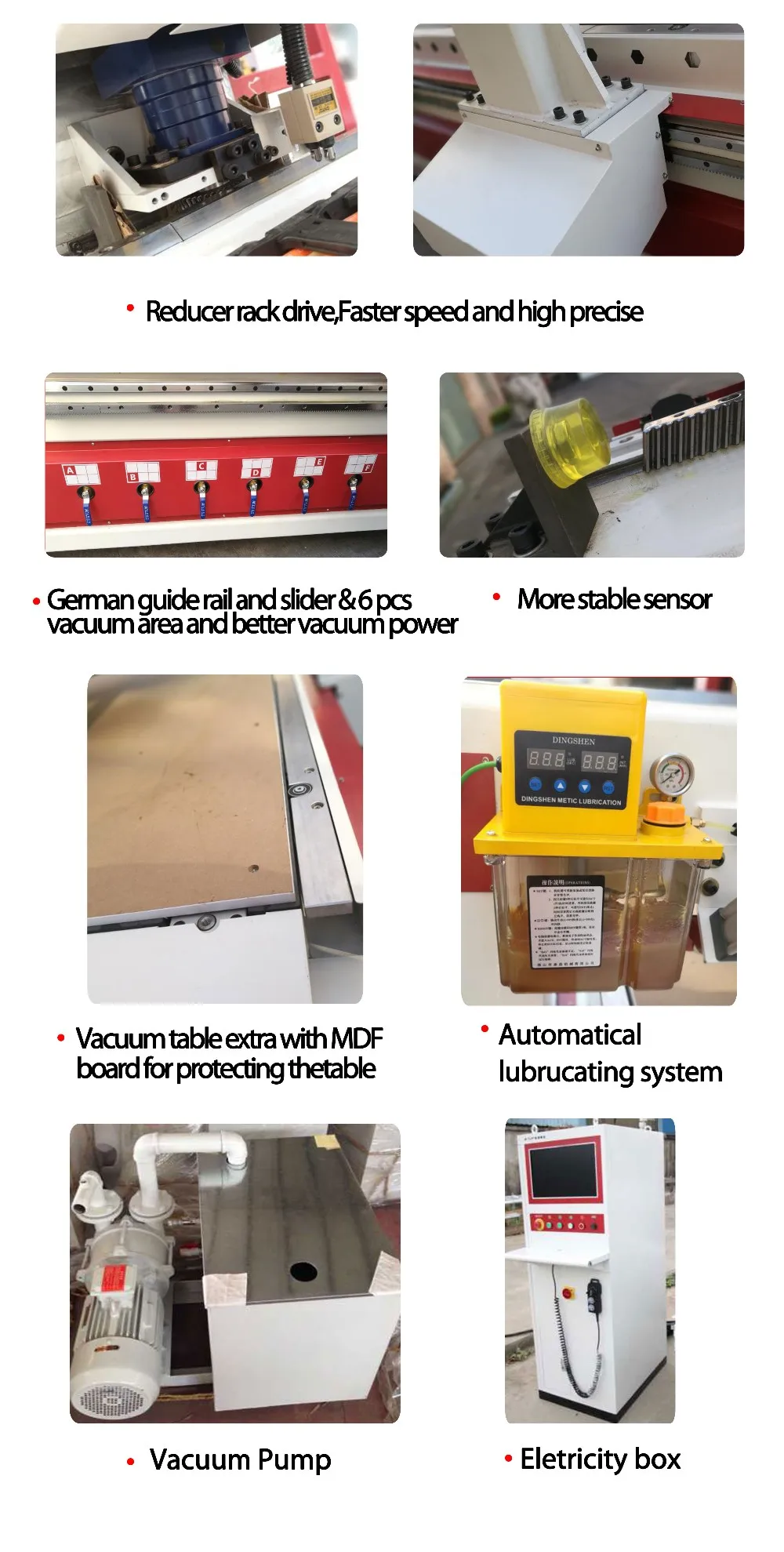

machine structure
work  table
vacuum  worktable with 6 areas
 X/Y/Z axis
Reducer gear and rack
5

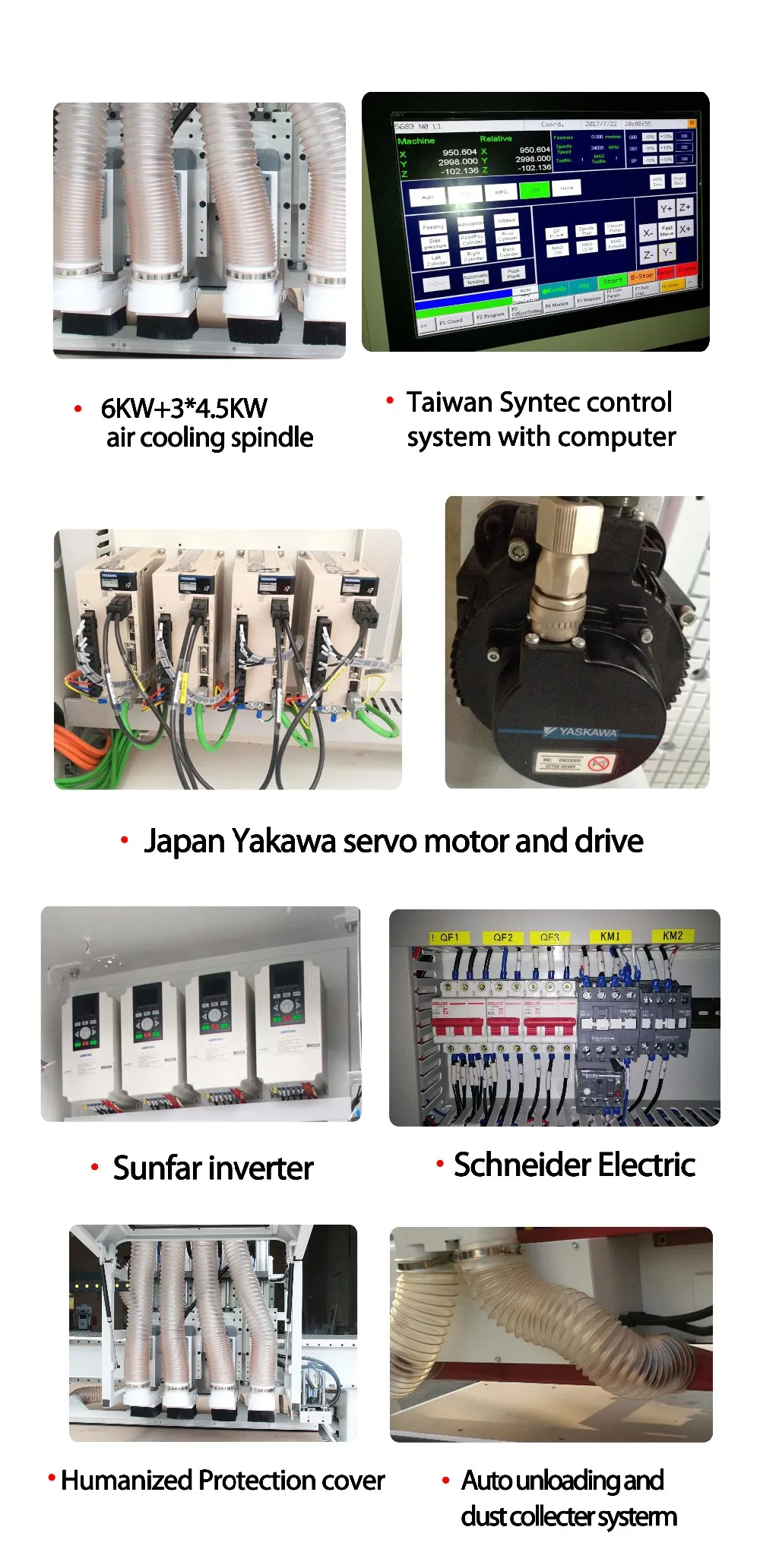

Main spindle
Quantity
4
Power
6kw+3*4.5kw air cooling spindle
Rotating speed
18000  rpm
6
Drive system
Japan Yaskawa servo motor and driver
7
Vacuum pump
Working  principle
Hydrodynamic cycle
Quantity
1
Power
7.5kw
Suction flow rate
160 m³/h
8
control  system
Tai Wan Syntec control system
9
Power supply
Voltage: 380V, 3-phase, Frequency: 50 Hz
10
Software
Jdpaint, powermill, Artcam, Alphacam, Type 3,  etc.
 CAD/CAM software compatible, identify G code, *.NC.
11
Packing size
3500*2100*2000mm
12
Net weight
1800KG
Related products
Production Process
About RUINUO
Stories of success
Package&Shipping
FAQ

1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape's cutting.

2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.

3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller's factory.
D..We can send engineer go to overseas training

4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit

5. Payment Terms

A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us

 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!


Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,
1 hour drive from Guangzhou airport
30 minutes drive from Lecong international furniture town
20 minutes drive from Leliu furniture hardware town
40 minutes drive from
Foshan building material town
