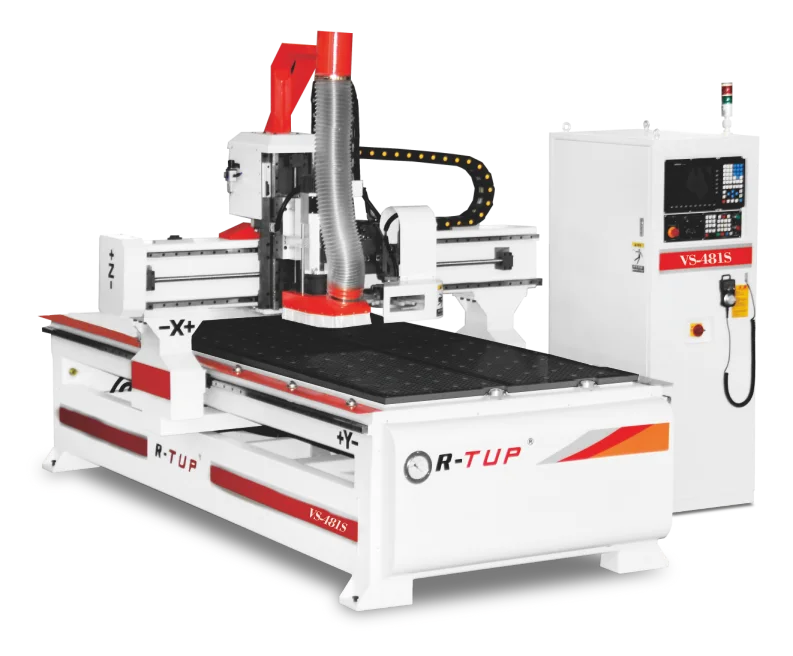

1325 wood door making cnc router cutting, wood door carving machine

FOB Reference Price:Get Latest Price
US $12,000-18,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
VS-481S
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
R-TUP
Voltage:
AC380V/50HZ
Power(W):
9kw
Dimension(L*W*H):
3500*2300*2300mm
Weight:
3000kg
Certification:
CE,ISO,SGS
Warranty:
1 year
Working area (X * Y * Z):
1300*2500*180 mm, can be customized
Spindle:
Italy HSD 9KW air cooling spindle
Spindle speed:
24000rpm/min
Max running speed:
60m/min
Max cutting speed:
30m/min
Processing precision:
±0.05mm
tools:
moveable 8 tools atc
controller system:
Taiwan syntec control system
motor:
Japan Yaskawa servo motor and driver
Transmission:
XYZ 3 axis ball screw
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Package:Foam inside ,poly film outside,wooden pallet is optional
Port
Shunde/Guangzhou/Shengzhen
Lead Time :
15 days after receiving deposit
Product Description
NO.
Machinical Specifications
Parameter
1
Working range
X-axis:
1300mm
Y-axis:
2500mm
Z-axis:
180mm
2
Machine Precision
Processing Precision
±0.05MM
Repeat positioning
±0.01MM
3
Machine Speed
Max. Traverse Speed
75m/min
Max. working Speed
35m/min
4
machine structure
work table
vacuum worktable
X/Y/Z axis
Ball Screw transmission
5
Main spindle
Quantity
1
Power
9KW
Rotating speed
24000 rpm
6
Drive system
servo motor and driver
7
Vacuum pump
Working principle
water
Quantity
1
Power
7.5KW
Suction flow rate
250 m³/h
8
control system
Syntec  control systerm
9
Power supply
Voltage: 380V, 3-phase, Frequency: 50 Hz
10
Software
Jdpaint, powermill, Artcam, Alphacam, Type 3, etc.
CAD/CAM software compatible, identify G code, *.NC.
11
Packing size
3500x2300x2300mm
12
Net weight
3000kg
Related products
Production Process
About RUINUO
Stories of success
Package&Shipping
FAQ

1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape’s cutting.

2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.

3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller’s factory.
D..We can send engineer go to overseas training

4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit

5. Payment Terms

A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us

 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!
