Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: R-TUP
  • Model Number: RD2512-8
  • Voltage: 380V/220V
  • Power(W): 2.2kw Spindle
  • Dimension(L*W*H): 2950*2300*1900mm
  • Weight: 1600kg
  • Certification: CE/ISO/SGS
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Spindle: 2.2KW Water-cooling spindle
  • Spindle qty: 8pcs, qty can be customized
  • Spindle speed: 24000rpm/min
  • Guide Rail: Taiwan PMI Linear Guide Rail
  • Control System: Taiwan Weihong Control System
  • Max working speed: 7m/min
  • Processing precision: +/-0.05mm
  • Diameter of cutter: 3.175-16mm
  • Working voltage: AC380V/50HZ
  • type: multi head 3D cnc wood router, 4 axis cnc router,cnc carving machine

Packaging & Delivery

Packaging Details Standard Package: Thickness PE Foam inside ,poly film outside, wooden pallet is optional for multi head wood 3D cnc router, 4 axis cnc router,cnc carving machine with rotary
Delivery Time within 15 days after deposit

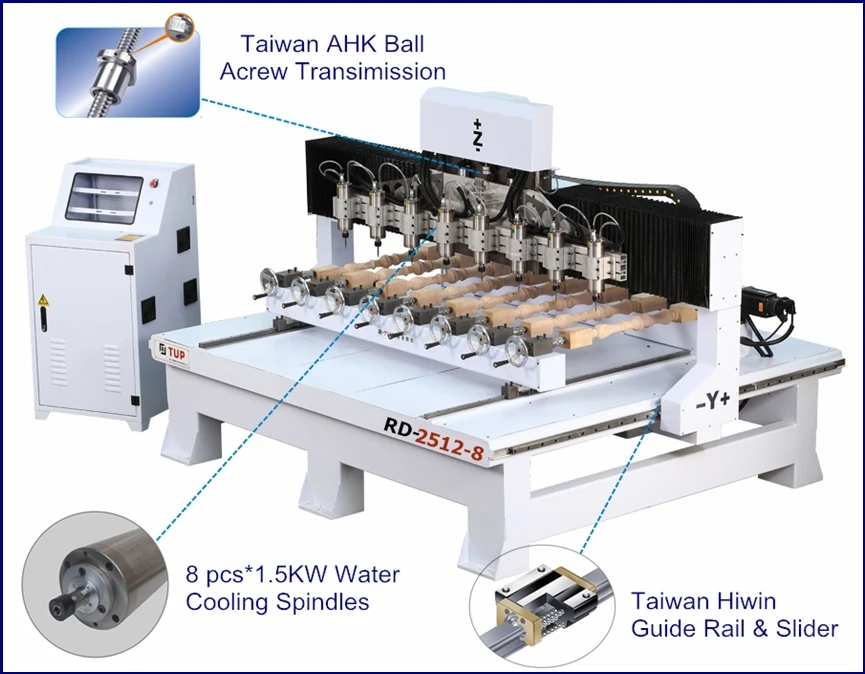

RD2512-8 Good quality 4 axis cnc router engraver machine/4 axis multi heads cylinder rotary



Product Description






What is the Features this machine?

1.Body structure: Cast steel body with aging &tempering treatment, solid and durable.

2.Water cooling spindle: keep the cooling effect and protect the spindle when the machine works for a long time.

3.Driving system:Three-axis servo motor, high resolution and positioning accuracy.

4. Drag chain: special drag chain with function of anti interference,anti static, high flexibility.

5. Linear guide: adopt Taiwan linear slid rail, high accuracy, ensure heavy loading and long lifetime.

6.Software: TYPE3,CAXA,MASTERCAM,ARTCAM,UG etc.



What is the Parameters of this machine?



NO.Machinical SpecificationsParameter
1StrokeMax. Processing Dia. Φ250mm
Max. Processing Length1200mm
2Machine PrecisionProcessing Precision±0.1mm
Repeat positioning accuracy±0.03mm
 Machine StructureX,Y,Z Transimission

X,Y,Z Axis: Ball Screw Transmission

4SpeedMax. Traverse Speed12m/min
Max. working Speed7m/min
5Spindle MotorSpindle Power8 pcs*2.2KW Hanqi water cooling spindles
Spindle Speed24000rpm
7Overall Size2950*2300*1900mm
8Net Weight1600kg
9Working VoltageAC380V/50Hz
10Operation System

Taiwan Weihong Control System

11Operation InstructionG-code, *.NC





What is the main parts and their features or advantages?

NO.Detail PicturesItemsBrand
 1Machine Structure

Cast steel body with aging &  tempering treatment, solid and durable

2

Water-cooling Spindle



1.  8pcs *2.2kw high speed spindles (water-cooling), adopt imported bearing which with dust cover, more secure;



2. Strong carving power, high precision, long service life;

3. Adopt grinding technology, can improve the motor concentricity, prolong service life.



4. More spindle working in one time, greatly improve production efficiency, can do 3D carving patterns, as well as  two-dimensional relief carving.



3

Driving System

Leadshine Motor set with imported precision bearing, strong torque, long working hours.





X,Y,Z axis drived by Leadshine driver, high resolution and positioning accuracy.

4

Transition











X,Y axis adopt oblique rack gear;

Z axis adopt Taiwan AHK high precision preload

anti-backlash ball screw, screw nut with tracking

airtight dust removal device, guarantee the

machine precision and service life.













5Guide Rail

Y axis adopt Taiwan 20mm guide rail;

X axis and Z axis adopts Taiwan Hiwin 20mm

guide rail, adding scraping devices external and

dust proof protection, extending the service

life of the guide rail effectively.

6





Electrical Component Breaker











Germany Schneider







7Frequency Inverter







Sunfar Frequency Inverter





8Electrical Compnent Cable

Special shielded cable drag chain special high

flexible, can bend millions of times, drag chain

support 150 degrees bend, effectively protect

the cable.

9 Approaching Sensor Switch

Dust proof, waterproof & antiseptic

(3 pcs for X,Y and Z axis)

10 Control System

Weihong System, visualization operation, real- time simulation, pretreatment ability

11 Software Available

Artcam, Alphacam, Type 3, etc.

CAD/CAM software compatible, identify G code, *.NC.

12 Collet8 peice







Finished Products

♦   Applications of  multi head 3D cnc wood router, 4 axis cnc router,cnc carving machine  with rotary





Production Flow



Certifications







Packaging & Shipping









Our Services



1. 12 Months warranty under normal use and lifelong maintenance we supply

2. 24 hours technical support by phone, email and other online contact.

3. free training on machine operation, daily maintenance and basic program designing etc.in seller’s factory

4. Friendly English operation manual.



Company Information

 Our R-TUP company is  10 years professional manufacturer and 6 years alibaba golden supplier,specilized in cnc router machine and carving machine.





 Exhibitions and Friendly customers

Our R-TUP CNC machinery  company attends a lot of Fairs every year such as Guangzhou Interzum, Dongguan famous furniture fair, Guangzhou Wardrobe Fair etc



Related machines

Dear friends, our machine can be customized according to your requirments:

1.Motor :step motor or servo motor optional

2.Spindle :spindle qty, air cooling or water-cooling, :1.5kw or 2.2kw  etc.optional

3.Guide rail :round guide rail or square linear guide optional

4.Worktable:Vacuum table,T-slot table,table size also can be customized.

etc.







 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!

1. what is you product?

2. what is the material of you product, and the size( length/width/thickness)?

3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?

4.what is the working area do you want?

5. do you have any other technical requirements? the more the better.

if you can provide some pictures of your products,that would be great!



Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,

1 hour drive from Guangzhou airport

30 minutes drive from Lecong international furniture town

20 minutes drive from Leliu furniture hardware town

40 minutes drive from Foshan building material town
