Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: R-TUP
  • Model Number: CH-481
  • Voltage: AC380V/50HZ
  • Power(W): 30kw
  • Dimension(L*W*H): 2300x3400x2300mm
  • Weight: 3000kg
  • Certification: CE,ISO,SGS
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Working area (X * Y * Z): 1220* 2440 * 400 mm
  • Max running speed: X/Y: 60m/min; Z: 25m/min
  • Max cutting speed: 30m/min
  • Spindle power: Italy HSD 9KW
  • Spindle model: Air-cooling spindel
  • Spindle speed: 24000rpm/min
  • Overall size: 2300*3400*2300mm
  • Net weight: 3000kg
  • Processing precision: ±0.05mm
  • Working voltage: AC380V/50Hz

Packaging & Delivery

Packaging Details CNC Machine CH-481
Standard Package:Foam inside ,poly film outside,wooden pallet is optional.
Delivery Time 30 days after receiving deposit
CNC Machine CH-481


Product Description
♦  Specification of CNC Machine CH-481:
NO.Machinical SpecificationsParameter
1StrokeX Axis1300mm
Y Axis2500mm
Z Aixs200mm
2Machine PrecisionProcessing Precision±0.05mm
Repeat positioning accuracy±0.01mm
3Machine StructureWorktable Vaccum Worktable
X,Y,Z Transition

X,Y Axis: Rack Gear

Z Axis: Screw Driving

4SpeedMax. Traverse Speed60m/min
Max. Cutting Speed30m/min
5Spindle MotorSpindle PowerHSD Italy 9kw
Spindle Speed24000rpm
6Diameter of CutterΦ3.175-Φ16mm
7Overall Size3000*4500*2500mm
8Net Weight4000kg
9Working VoltageAC380V/50Hz
10Operation SystemTaiwan Syntec Control System
11Operation InstructionG-code, *.NC







♦  Configuration of CNC Machine CH-481:

NO.Detail PicturesItemsBrand

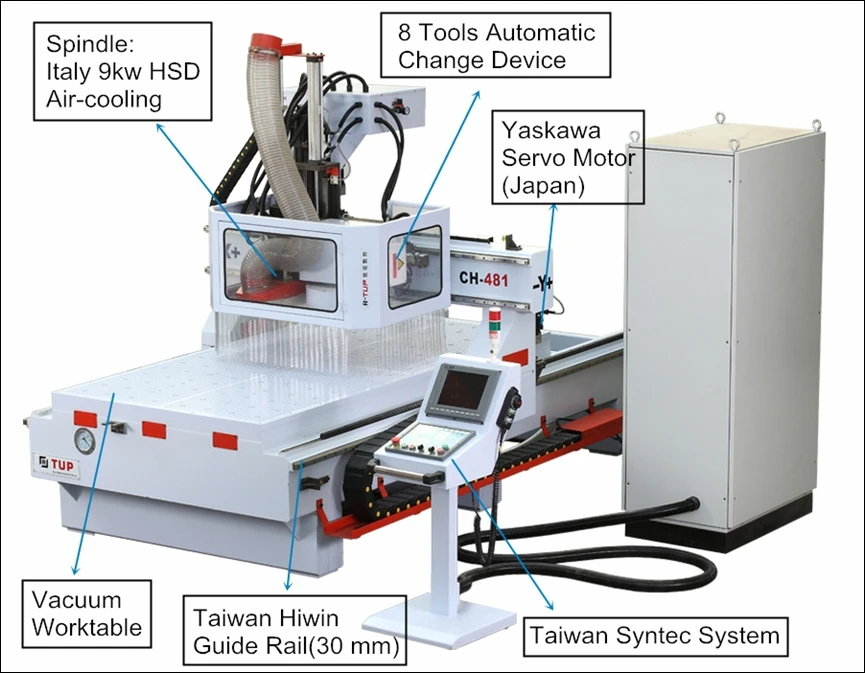

1



Vacuum Worktable

Divided into 4 area * 32holes/area.

Equipped with 7.5kw water pump.

2



Spindle

9kw HSD Air-cooling Spindle(Italy)



With automatic lubrication, it don't need to

add oil external; Strong torque, high efficcient

processing speed, suitable for technological

cutting, milling and other heavy processing

technology, ensure edge neatly without a ripple.

3



Tool Change Device

8 tools automatic change knife library

( Moveable type)

4



Driving System

Yaskawa Servo Motor and Driver(Japan)

With imported precision bearing, large torque,

long working hours.

Three axis drived by Japan Yaskawa Servo

Driver, high resolution and positioning accuracy.

5



Transition

X,Y axis adopt oblique rack gear;

Z axis adopt Taiwan AHK high precision preload

anti-backlash ball screw, screw nut with tracking

airtight dust removal device, guarantee the machine precision and service life.

6



Guide Rail

Y axis adopt Taiwan Hiwin 30mm guide rail;

X axis and Z axis adopts Taiwan Hiwin 25mm

guide rail, adding scraping devices external and

dust proof protection, extending the service

life of the guide rail effectively.

7



Frequency Inverter  Taiwan Delta Frequency Inverter (9kw)
8





Electrical Component Breaker











Germany Schnelderd













9Electrical Component Cable

Germany Helukabel

Special shielded cable drag chain special high

flexible, can bend millions of times, drag

chain support 150 degrees bend, effectively

protect the cable

10 Reduction BoxJapan Simpo
11 Approaching Sensor Switch

Dust proof, waterproof & antiseptic

(3 pcs for X,Y and Z axis)

12 Heat DissipationFan Cooling
13 Control System

Taiwan Syntec System, visualization operation, real- time simulation,

pretreatment ability

14 Software Available

Artcam, Alphacam, Mastercam, Type 3, UG,

Caxa, JD Paint, etc.

15 Collect8 pcs







Finished Products

Applications of CNC Machine CH-481 :

Woodworking Industry: Three-dimensional wave board processing, cabinet doors, wooden craft, non-paintdoors, screens, furniture, caraft window processing products, fan-shaped sculpture milling.

Advertisement Industry: Advertising signs, PVC boards, double colour boards, logo production, acrylic cutting, suck plastic molding, large word cutting, scutcheon production, crystal plates, LED / neon groove, aperture cutting, light box mould production.



Production Flow





Certifications





Packaging & Shipping









Why to choose us?

Because we can provide you more.



1.What kinds of processing can the CNC Machine do?

A: The CNC Machine can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape’s cutting.
2.What kinds of materials can the CNC Machine work on?
A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.
(A) If the motor is hot, check whether the water pump is working and whether the re-circulating water is normal.
(B)If the motor cannot work, check its line and see whether it is short circuit.
(C) If the sound of the motor is unusual, check it to see whether it is under overloading operation which lead to internal
(D) If the motor is inversion, check the motor line to see if the UVW ports has changed both ends randomly.
3. Why the CNC engraving machine engraves in different depth?
1). The control card is loose or broken.
2). The stepper motor has been broken
3). The driver is broken or current subdivision is inconformity with the setting of software
4). The motor line of Z axis has broken
5). The motor of the spindle has broken
6). Frequency interference or something wrong with the data setting
7). Static interference
8). The computer system has problems or virus
9). The worktable is not flat
4. The CNC engraving machine engraves out of control
1). The control card has been broken
2). Frequency interference
3). File path has errors
4). Static interference
5). Software setting has some problems
6). Driver is broken or current subdivision is wrong
7). Data line has some problems
8). The computer system has problems or virus
5. The spindle of the CNC engraving machine stop working
1). Short circuit inside the spindle
2). screen current
3). Frequency interference or something wrong with the data setting
4). The control card is broken
5). A kind of short circuit about the spindle line or data line
6. The running sound of the spindle is unusual
1). Frequency changer setting is wrong
2). The spindle is not working
3). The spindle itself has some problems (Bearing is broken)
7. The CNC engraving machine goes to the opposite way while working or going back to machinical origin

1). Modify the file in the TXT

2). Change the way of connexting the frequency changer

3). Change the direction of the motor in thr Weihong software.
8. The spindle motor stop working or run in the opposite direction
1). Check the parameter setting of the interference changer
2). See if the holding wire of the interference changer is in wrong contact
9. When opening the ,software, axis off
1). Problem of driver or the output holding wire is in bad contact
2). The motor line is in bad contact.





1. Guarantee & After-sale Service

1.1

12 Months warranty under normal use and lifelong maintenance we supply

1.2

24 hours technical support by phone, email and other online contact.

1.3

Free training on machine operation, daily maintenance and basic program designing etc.

in seller’s factory

1.4

Friendly English operation manual.

2. Delivery Time

2.1

Usually, for normal model, within 30 days after get the 30% deposit

3. Payment Terms

3.1

T/T in advance

3.2

L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.

3.3

Other kinds of payment we can consider if acceptable for us.






How to order?

1

  Consult:

Our professional sale-men will recommend the optiomal model to you according to your requirement:

1. The technical required ( for cutting or for engraving):

2. Material, solid wood, MDF, chipboard etc;

3. Size: Length, Width, Thickness;

4. Final product you want to produce: door, cabinet, wardrobe or decoration.

2

 Quotation:

After knowing your requirement, we will supply you with our detail quotation

basic on your technical requirement.

3

 Quotation Evaluation:

We will do our best to meet your requirement.

4

 Placing order:

If both sides without any question, we will send you Proforma Invoice, then

both sides sign a sales contract.

5

 Production:

We will arrange the production as soon as we receive your 30% T/T down

payment. We will update and inform the lasted news about production for you.

The whole production will be mastered in your side.

6

 Test machine:

We will inform you come to our factory to test the machine to make sure they

can work well before delivery.

7

 Delivery:

We will arrange delivery as the terms we both agreed with and after the

confirmation by buyer.

8

 Customs Clearance:

We will prepare and send all the necessary shipping documents to you and

ensure a smooth customs clearance.
